(ATC-1200) TCP/IP To RS-232/422/485 Converter
Note: ATC-1000 (DISCONTINUED, USE ATC-1200 INSTEAD)

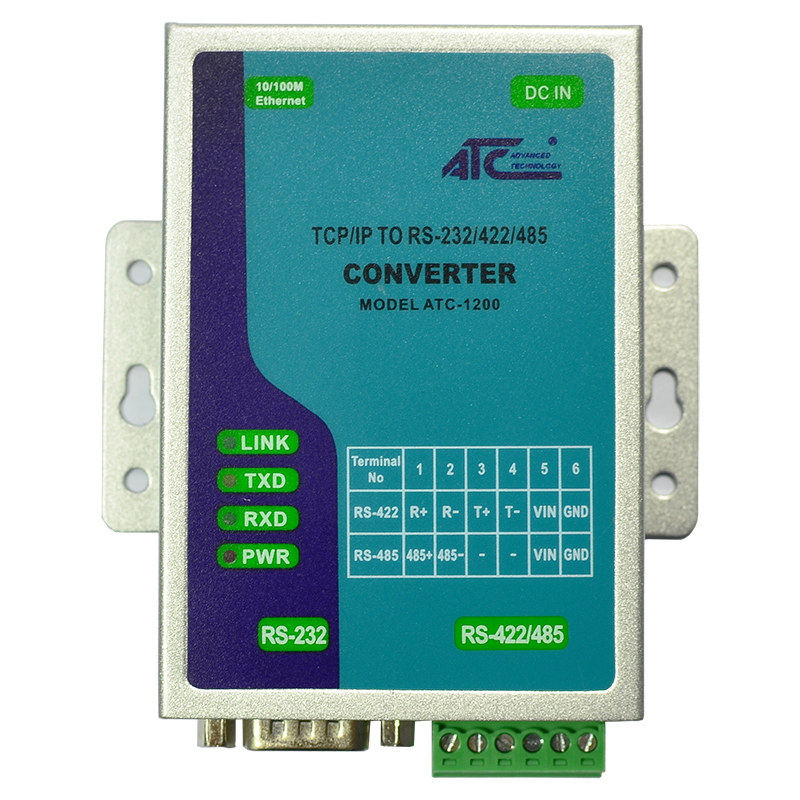

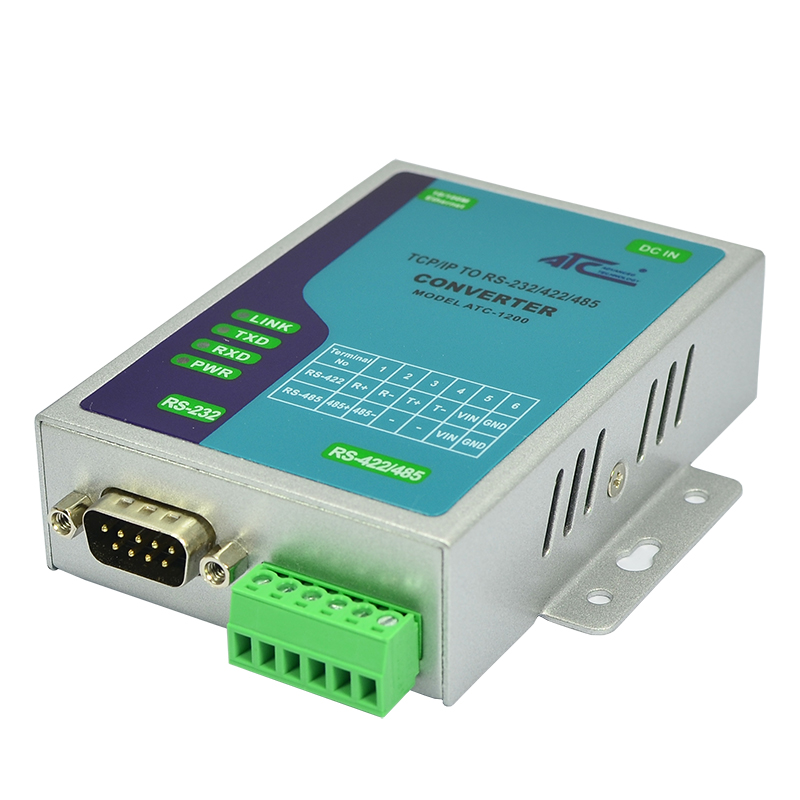

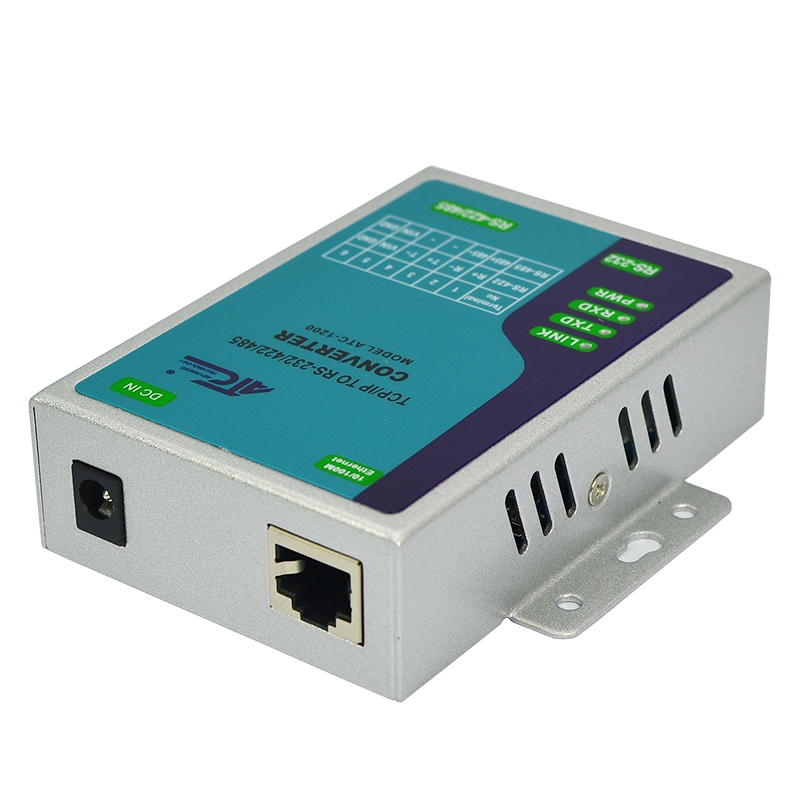

【Product Overview】
The ATC-1200 is a cost effective and highly integrated Serial-to-Ethernet Converter. Embedding a 8-bit pipelined RISC, single cycle per instruction with maximum operating frequency of 100Mhz (100 MIPS),Embed 512KB Flash memory and 32KB SRAM for data memory.10/100Mbps Ethernet and serial port support handshake RTS, CTS. ATC-1200 Can control 1 x RS232/422/485 devices located virtually anywhere (via Ethernet or Internet). Automatically finds devices in the network Configuration over Driver Panels, serial Port,Telnet,WEB Browser,SNMP Automatic mode switching between Driver and RAW mode Support TCP/IP, UDP, DHCP, Support TCP, UDP, ICMP, IPv4, DHCP, BOOTP, ARP, DNS, SMTP, SNTP, uPNP, and HTTP in software.
【Product Features】
◆ 3-in-1 RS-232/422/485 interface Max.921.6Kbps Serial interface and 10/100 Mbps Ethernet
◆ Supports 4- and 2-wire RS-422 and built-in terminator
◆ Supports industrial 12-24 VDC power input
◆ Terminal block accessories for easy RS-422/485 serial wiring
◆ Supports IP configuration by web browser
◆ Supports configuration store and copy for easy deployment
◆ Supports Driver, TCP Server/Client, UDP Server/Client, Pair Connection operation modes
◆ Easy and powerful configuration program
◆ Approval CE, FCC, RoHS
【Product Parameters】
| Serial Interface | |||||
|---|---|---|---|---|---|
| Interface Type | RS-232/485/422 3 in 1 (optional) | ||||
| Data Rate | RS-232 | 1200 ~ 115200bps | RS-422/485 | 1200 ~ 921600bps | |
| Data Length | 5,6,7,8 bits | ||||
| Parity | Odd, Even, None | ||||
| Stop Bits | 1,1.5,2 bits | ||||
| Flow Control | None, Software: Xon/Xoff, Hardware: RTS/CTS | ||||
| Connector | RS-232 | DB-9 male | |||
| RS-422/485 | 6-pin Terminal block | ||||
| Serial Line Protection | 600W for RS-232/422/485 | ||||
| Network Interface | |||||
| Interface Type | Ethernet 10/100Mbps (Auto-Sensing) | ||||
| Connector | 8-pin RJ-45 | ||||
| Magnetic Isolation Protection | Built-in 1.5KV | ||||
| System | |||||
| CPU | Embedding RISC CPU 100Mhz (100 MIPS) | ||||
| Memory | 32KB SRAM.512KB Flash memory | ||||
| Software | |||||
| Network Protocols | TCP,UDP,DHCP Client, HTTP Server, DNS Client,Telnet | ||||
| Configure Options | Web Page,Windows Utility | ||||
| OS support | Windows95/98/ME/NT/2000/XP/2003/WIN7/WIN8/WIN10 | ||||
| LED Indicators | |||||
| LINK | 10/100Base-TX Link & Activity Indicator | ||||
| TXD | Date Transmitting from Ethernet to Serial | ||||
| RXD | Date Transmitting from serial to Ethernet | ||||
| PWR | Power indicator | ||||
| Power Supply | 9~24VDC @1A | ||||
| Physical Characteristics | |||||

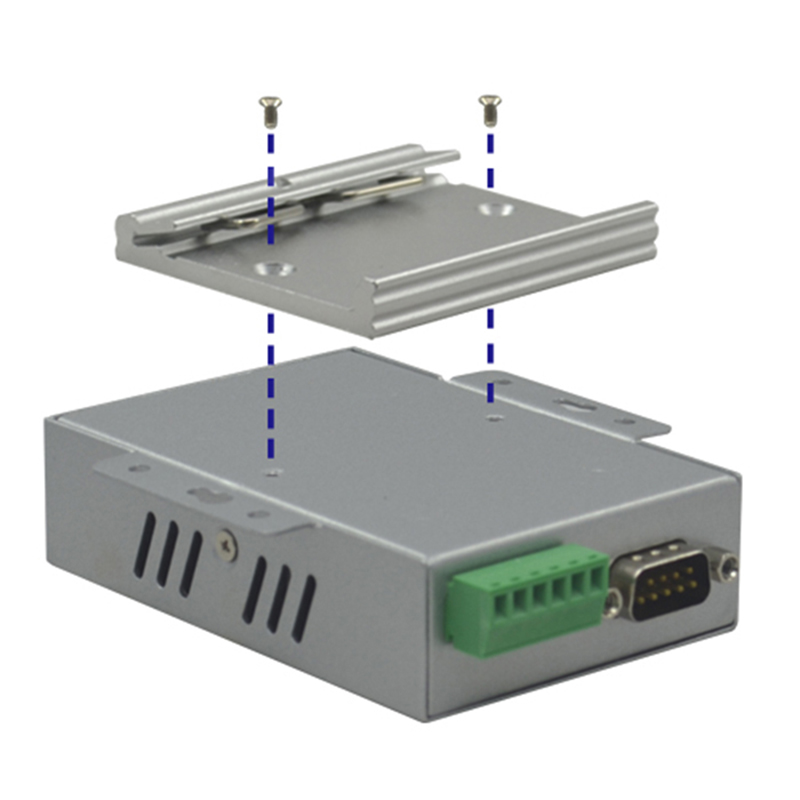

| Installation | DIN-Rail Mounting | ||||
| Housing | Iron (1mm) | ||||
| Weight | 0.5Kg | ||||
| Dimensions | Without ears | 100 × 67 × 26 mm(3.94 × 2.64 × 1.02 in) | |||
| With ears | 100 × 86 × 26 mm(3.94 × 3.39 × 1.02 in) | ||||
| Environmental Limits | |||||
| Operating Temperature | -25 ~ 70°C (-13 ~ 158°F) | ||||
| Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) | ||||
| Ambient Relative Humidity | 5% to 95%(non-condensing) | ||||
| Standards and Certifications | |||||
| RoHS, CE, FCC | |||||
【Product Size Chart】
Unit：mm
.jpg)
【Product Applications】
Company products are widely applied and electric power, industrial control, telecommunications, commerce, banking, insurance, security, smart cards and other industries, the company sold products, complete, cost-effective. ATC-1200 is an High performance and Low cost Ethernet serial servers, with three-in-one functionality, lightning protection, support for many network protocols and adaptability, at a relatively harsh conditions also can work as usual, such as: oil, dams, steel mills, iron works, and so on. . .
【Packing Checklist】
| ATC-1200 unit | 1PCS |
| Documentation and software CD | 1PCS |
| Power adapter (EU、SU、AU、CN) 9v@1A | 1PCS |
| ATC-1200 Instructions Book | 1PCS |
