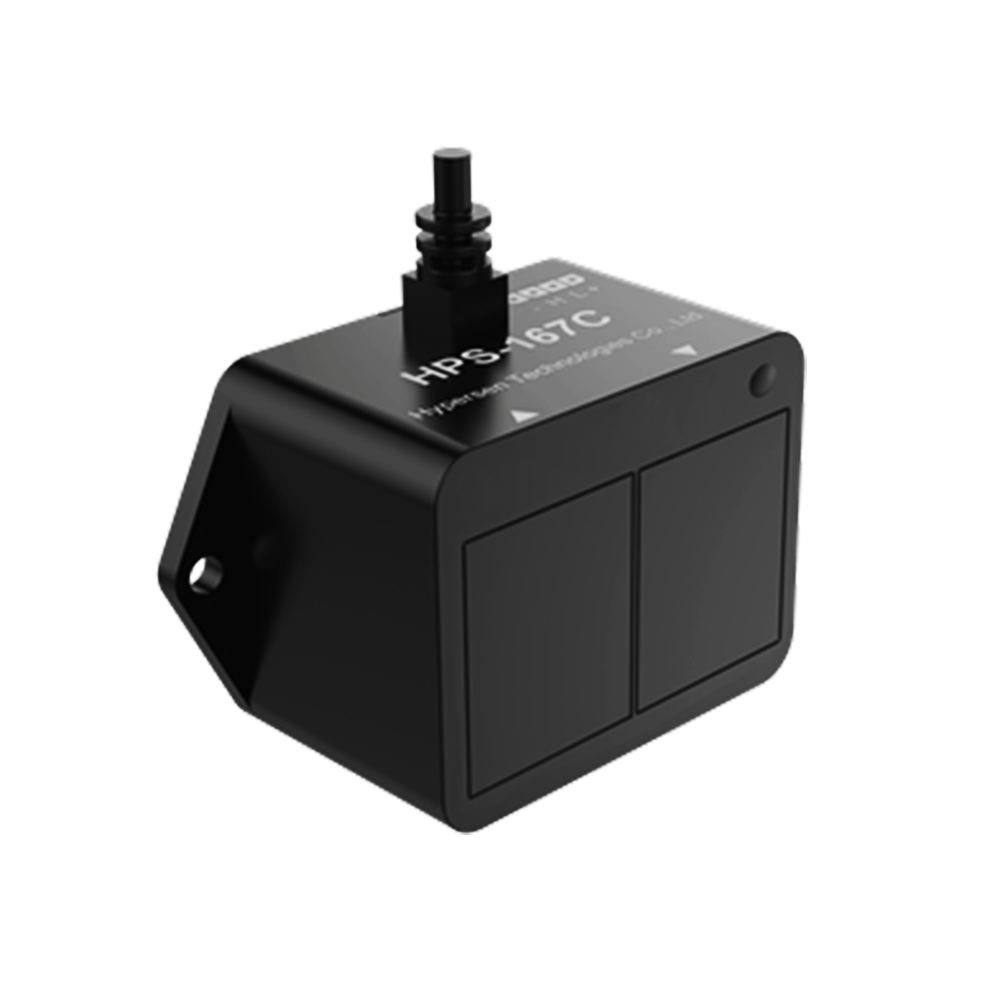

Description:
The HPS-167C is a sophisticated Time-of-Flight (ToF) infrared ranging sensor designed to deliver high SNR, fast, and accurate distance measurements. It features integrated ambient light, temperature, and color compensation algorithms, making it highly reliable for various applications.
Features:
- High SNR: Ensures clear and reliable signal measurements.
- Accurate Ranging: Provides fast and precise distance measurements.
- Compensation Algorithms: Integrates ambient light, temperature, and color compensation for enhanced accuracy.
- Adaptive Data Output Rate: Ranges from 6 to 54Hz for optimal performance.
- Durable Design: Housed in an ABS+aviation aluminum waterproof case for added protection.
Application:
- Drone Altitude Holding
- Drone Soft-Landing
- Drone Collision Avoidance
- Security Systems
- Height Difference Measurement
- Empty Bay Detection
Package Includes:
1 x ToF Ranging Sensor HPS-167C
Specification:
| Model: | HPS-167C |
|---|---|
| Power Supply: | DC 5~15V |
| Maximum Power Consumption: | 1.4W |
| Quiescent Power Consumption: | 0.1W |
| Storage Temperature: | -40~+85℃ |
| Operating Temperature: | -10~+55℃ |
| Emitter: | Infrared LED |
| Emitting Angle: | ±1.8° |
| Maximum Measuring Distance: | 18m |
| Minimum Measuring Distance: | 0.08m |
| Waterproof: | ABS+aviation aluminum waterproof case |
| Adaptive Data Output Rate: | 6~54Hz |
| Output Data: | Distance, accuracy, signal strength, ambient IR level, temperature |
| Communication Interface: | CAN |
| Shipping Weight | 0.040 kg |
| Shipping Dimensions | 9 × 9 × 4 cm |
