Description:
The HPS-167S is a high-performance ToF infrared ranging sensor known for its high signal-to-noise ratio (SNR) and fast, accurate distance measurement. It features integrated ambient light, temperature, and color compensation algorithms, making it suitable for a wide range of applications. The sensor’s adaptive output data rate ranges from 6 to 54Hz.
Features:
- High SNR: Ensures clear and reliable measurement signals.
- Fast and Accurate: Provides quick and precise distance ranging.
- Compensation Algorithms: Includes ambient light, temperature, and color compensation for enhanced accuracy.
- Adaptive Data Output Rate: Dynamically adjusts between 6 and 54Hz for optimal performance.
- Robust Design: Features an ABS and aviation aluminum waterproof case.
Package Includes:
1 x ToF Ranging Sensor HPS-167S
Specification:
| Model: | HPS-167S |
|---|---|

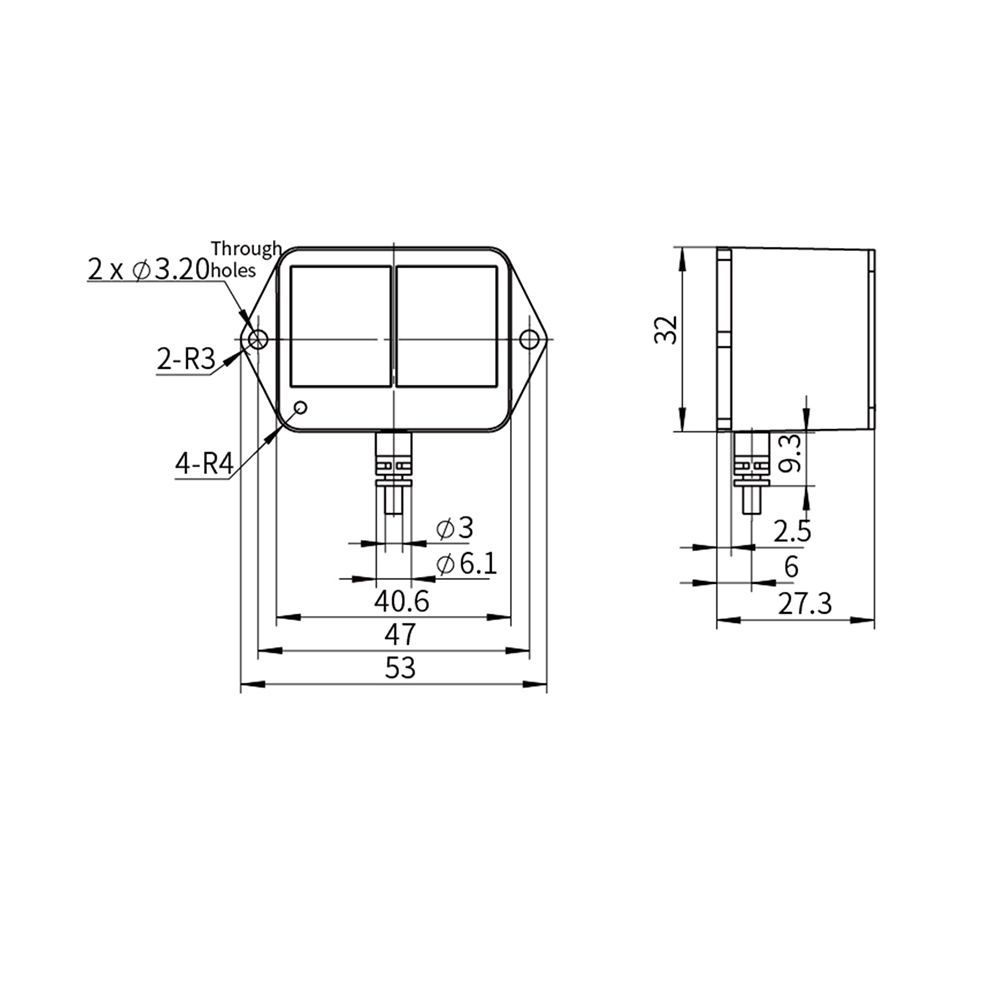

| Size: | 53x32x26.5mm |
| Weight: | 27g |
| Power Supply: | DC 5~15V |
| Maximum Power Consumption: | 1.4W |
| Quiescent Power Consumption: | 0.1W |
| Storage Temperature: | -40~+85℃ |
| Operating Temperature: | -10~+55℃ |
| Emitter: | Infrared LED |
| Emitting Angle: | ±1.8° |
| Maximum Measuring Distance: | 18m |
| Minimum Measuring Distance: | 0.08m |
| Waterproof: | ABS + aviation aluminum waterproof case |
| Adaptive Data Output Rate: | 6~54Hz |
| Output Data | Distance, accuracy, signal strength, ambient IR level, temperature |
| Communication Interface | CAN, Rs485-Modbus |
| Shipping Weight | 0.030 kg |
| Shipping Dimensions | 9 × 9 × 4 cm |
