Description:
The HPS-167U is a robust ToF infrared ranging sensor designed for precise distance measurement. It features high SNR, fast ranging capabilities, and integrated compensation algorithms, making it ideal for various applications including drones and security systems.
Features:
- High SNR: Delivers clear and reliable signal measurements.
- Accurate Ranging: Ensures fast and precise distance measurement.
- Compensation Algorithms: Integrates ambient light, temperature, and color compensation for enhanced accuracy.
- Adaptive Data Output Rate: Adjusts dynamically between 6 and 54Hz for optimal performance.
- Durable Build: Encased in an ABS+aviation aluminum waterproof case.
Application:
- Drone Altitude Holding
- Drone Soft-Landing
- Drone Collision Avoidance
- Security Systems
- Height Difference Measurement
- Empty Bay Detection
Package Includes:
1 x ToF Ranging Sensor HPS-167U
Specification:
| Model: | HPS-167U |
|---|---|

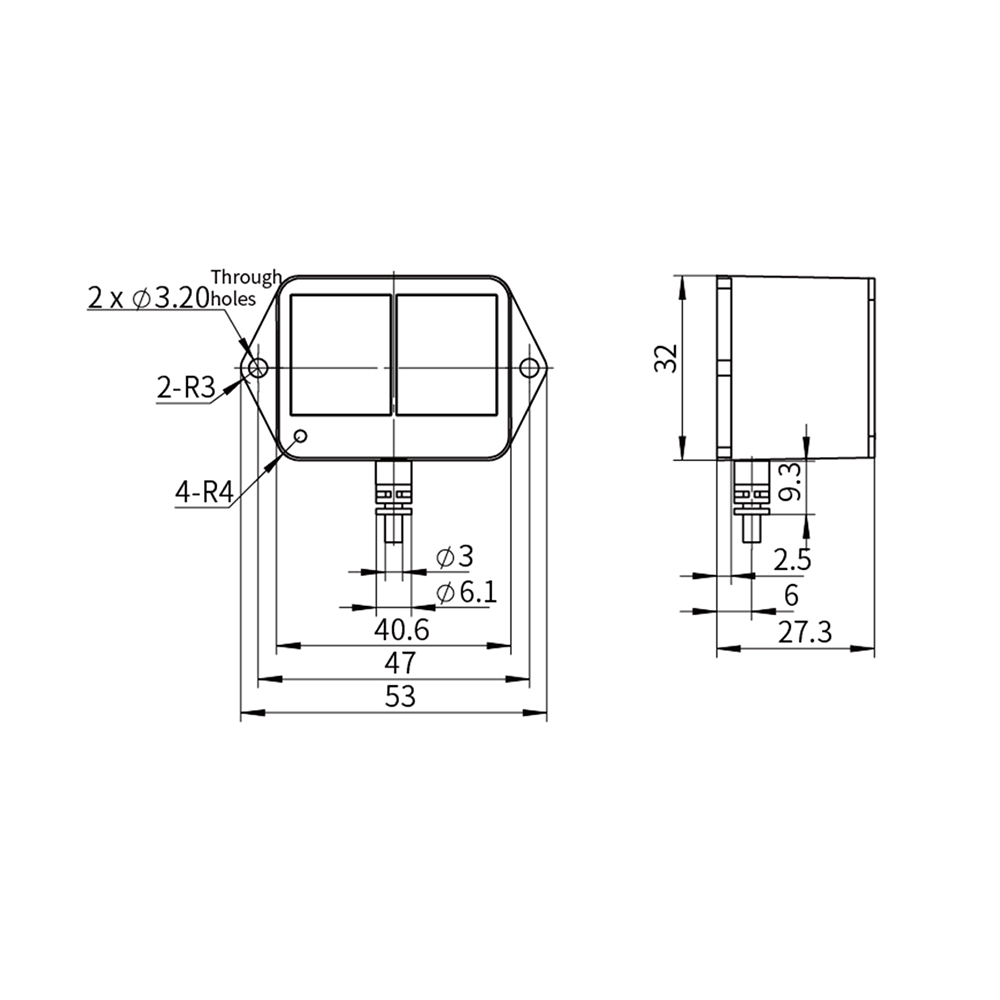

| Size: | 53x32x26.5 |
| Weight: | 27g |
| Power Supply: | DC 4~6V |
| Maximum Power Consumption: | 1.3W |
| Quiescent Power Consumption: | 0.1W |
| Storage Temperature: | -40~+85℃ |
| Operating Temperature: | -10~+55℃ |
| Emitter: | Infrared LED |
| Emitting Angle: | ±1.8° |
| Maximum Measuring Distance: | 18m |
| Minimum Measuring Distance: | 0.08m |
| Waterproof: | ABS+aviation aluminum waterproof case |
| Adaptive Data Output Rate: | 6~54Hz |
| Output Data: | Distance, accuracy, signal strength, ambient IR level, temperature |
| Communication Interface: | TTL UART |
| Shipping Weight | 0.060 kg |
| Shipping Dimensions | 9 × 9 × 4 cm |
