【FEATURES】
| The 3.3V/5.0V output MB102 Breadboard power supply module is an easy to use, most useful breadboard component that can be added with any breadboard related projects where 5.0V, 3.3V or both power requirements are required.
| Designed to fit the standard MB102 bread board
| On-board Two sets of 3.3V, 5.0V DC output pins
| Power Supply comes with On/Off Switch
| Green LED power indication
| Built-in protection against short-circuit through power limiting circuitry
【APPLICATION】
| Used in electronic circuits on the breadboard DIY projects
【DESCRIPTION】
| Our products are widely used in: instrumentation, automation, communication, IoT equipment, industrial control, medical instruments, power automation, office automation equipment, handheld devices, GPS navigation, POS terminal, household appliances and other electronic products

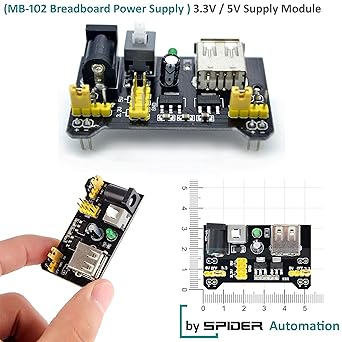

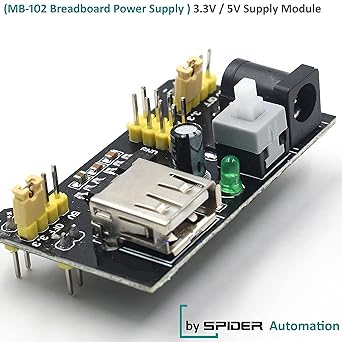

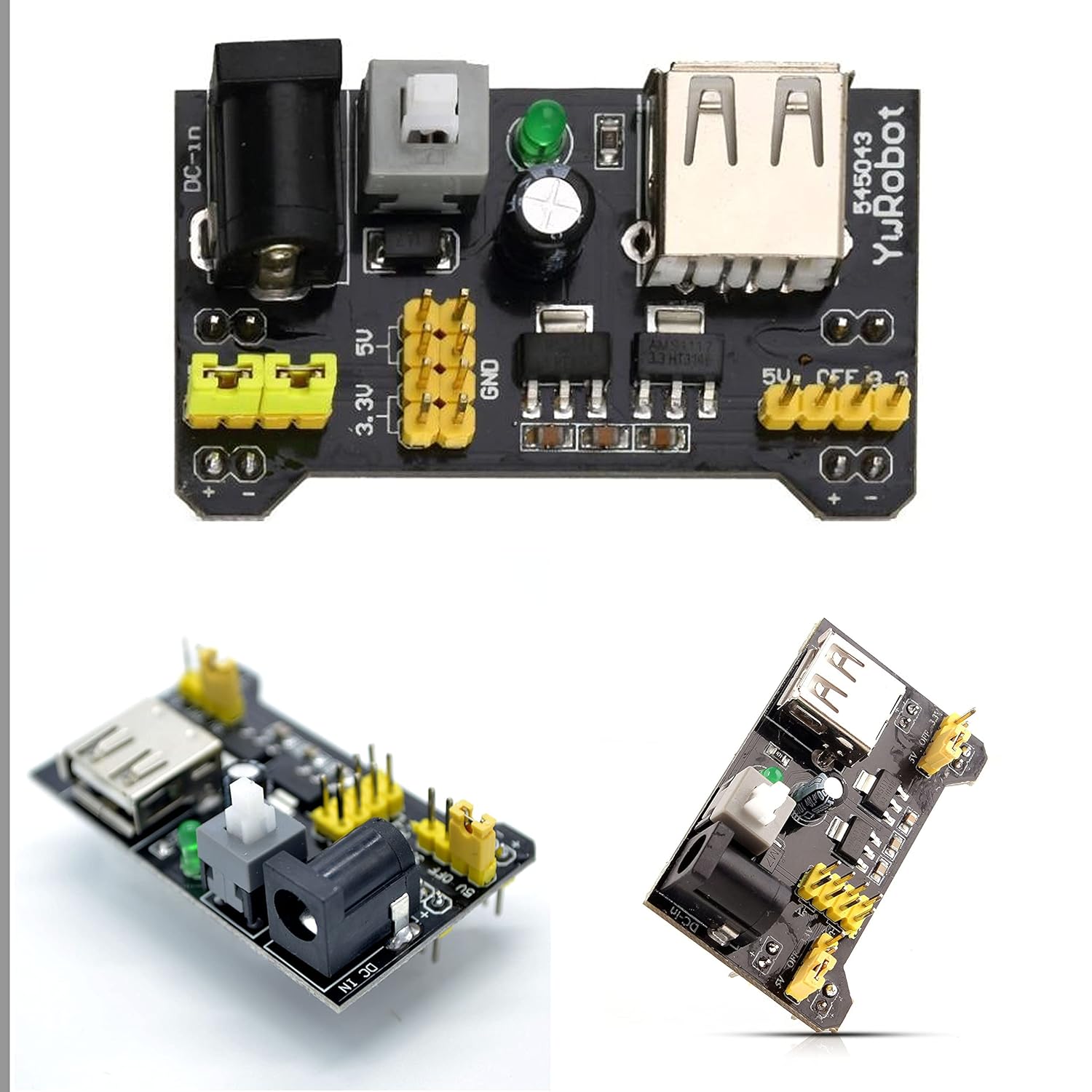

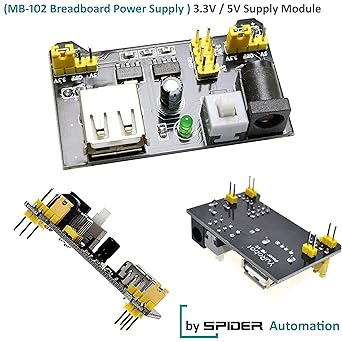

| This is a 3.3V/5V MB102 Breadboard Power Supply Module which provides a dual 5 V and 3.3 V power rails and has a multi-purpose female USB socket.

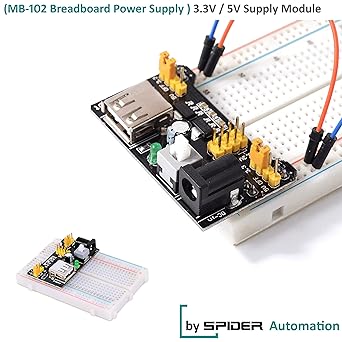

| The 3.3V/5V MB102 Breadboard Power Supply Module securely fits in a standard 400 or 800 tie points breadboard it also features reverse polarity protection, the module can take 6.5V to 12V input and can produce 3.3V and +5V.
| The module can also output 5V on USB connector or input through the USB connector. It’s a must-have product for experimenters those have to test / prototype electronic circuits on the breadboard.
| The module has ON / OFF switch to turn on and off module. It comes with reverse polarity and short circuit protections, which greatly helps during building and testing circuits on the breadboard

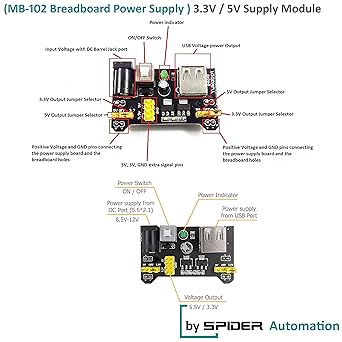

【Pin Description】:
| LEFT Jumper: 5V, OFF (0V), 3.3V Selection
| RIGHT Jumper: 5V, OFF (0V), 3.3V Selection
| 4-Berg Header: GND
| 2-Berg Header: 3.3V
| 2-Berg Header: 5V
【SPECIFICATION】
| Input Voltage : 6.5-12V (DC) or USB power
| Output voltage: 3.3V, 5.0V switchable (adjustable via jumpers. 0V, 3.3V, and 5.0V configuration)
| Maximum Output Current: <700ma
| Dimension: 53 x 32 x 23 mm
.
| Package Included: 1 x (MB102 Breadboard Power Supply Module)
