[PRODUCT DESCRIPTION]:
LIMIT SWITCH also named the POSITION SWITCH, is a commonly used small current main electrical appliance, the action is realized through the collision of the moving parts of the production machinery or segmented control circuit, to achieve certain control targets.
The lever arm can be rotated to the left by 90° degrees and to the right by 90° degrees.
Perfect for electrical control switches in mechanical and other industries; This Limit Switch can be widely used in various machines to monitor the position of moving parts of machines and plants; Please pay attention to the Voltage Rating and check with the voltage of your place to make sure the Limit Switch successfully works.
[PRODUCT SPECIFICATIONS]:
[Product]: Limit Switch
[Model]: ME-8104
[Actuator Action]: Momentary

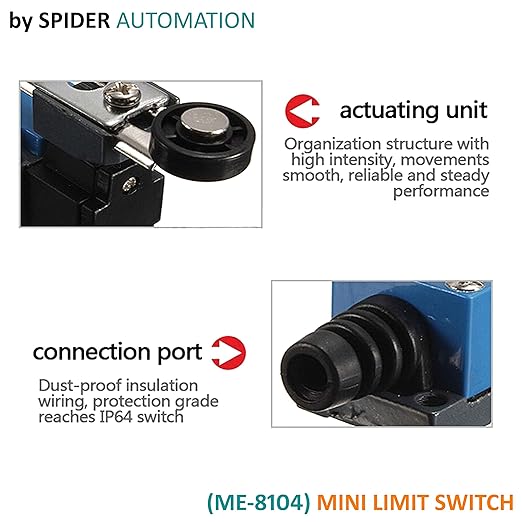

[Actuator Type]: Rotary Adjustable Lever Arm with Roller

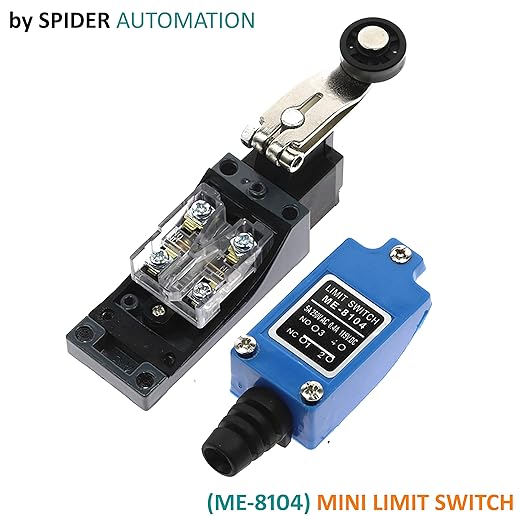

[Contact Configuration]: 2 NC + 2 NO / 1NO,1NC(DPST)
[Voltage Rating]: AC 250V 5A / DC 115V 0.4A

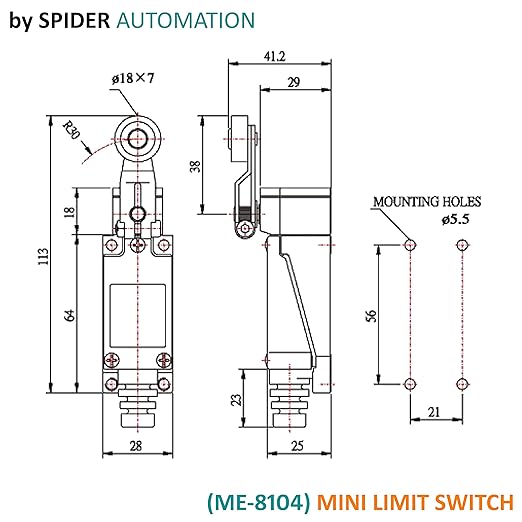

[Roller Dimension]: 1.8 x 0.7cm / 0.7 x 0.3″(D*H)
[Lever Arm Length]: 4.6cm / 1.8″
[Fixing Thread Diameter]: 0.4cm / 0.2″

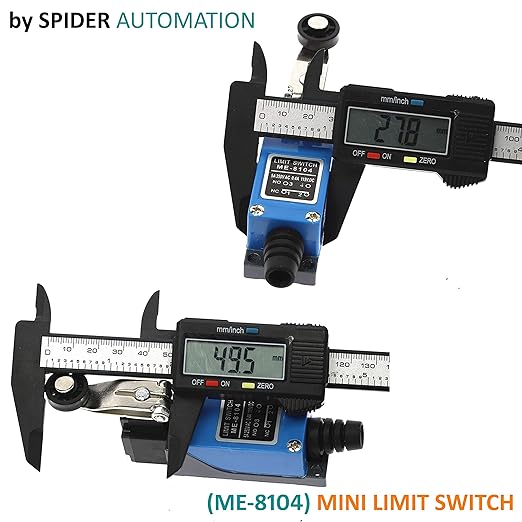

[Total Size]: 12.5 x 2.8 x 5cm / 4.9″ x 1.1″ x 2″ (L*W*H)
[Color]: Blue, Gray, Black
[Material]: Rubber, Resin, Plastic Metal
