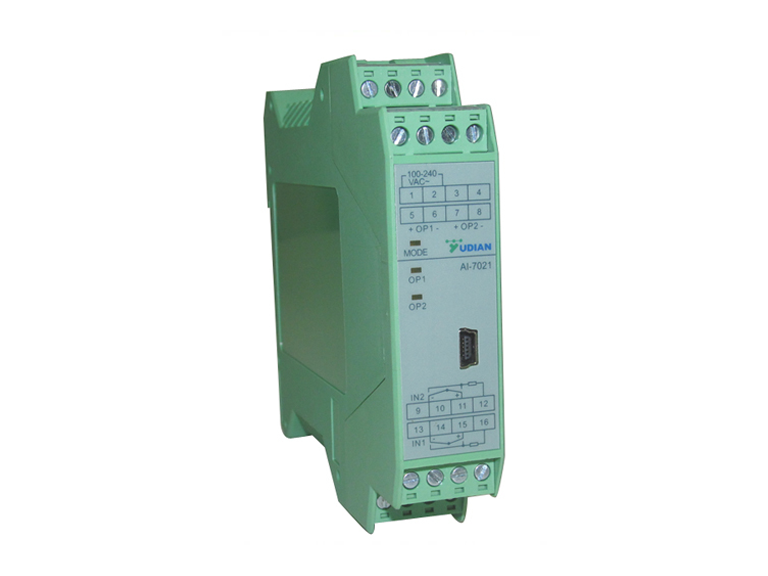

Features
- It provides 2 channels of configurable inputs, and supports multiple voltage, RTD, thermocouple inputs with auto reference junction compensation. If parallel connected to an external precise resistance, it accepts current signal input. Each channel has its own digital filtering and can adjust its filtering degree.
- It generates two isolated current outputs, 4-20mA or 0 – 20mA. The range of retransmission output can be freely defined.
- DIN rail mounted type, 22.5mm installation width.
- Adopt high-performance components, significantly reduce temperature shift and mutual interference between channels.
- Digital-correct current output, no potentiometer, improved the accuracy and stability for current output.

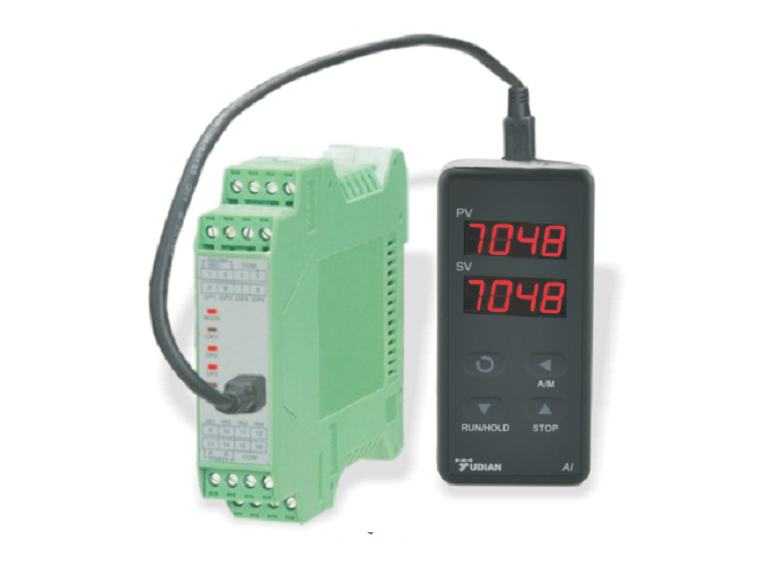

- Can be programmed by E8 handheld display with 1394 wiring, such as input type, define range of retransmission output.
Specifications
- Input type : Thermocouple: K, S, R, E, J, T, B, N, WRe5-WRe26 RTD: Pt100, Cu50, 0~20mV, 0~60mV, 0~100mV, 0~1V, 0.2~1V, 4-20mA, 0-20mA, 0-10V DC
- Retransmission accuracy : 0.3%FS ± 1 digit (including input and output error)
- Output Specification : can be freely defined in the range of 0~22mA with maximum output voltage ≥ 11V
- Temperature drift : ≤0.015%FS /°C (including the temperature drift of input and output)
- Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4 (EFT); 4KV according to IEC61000-4-5.
- Isolation withstanding voltage : voltage between power, signal input and output terminals ≥2300VDC; between inputs or 2 outputs ≥200VDC
- Power supply : 100~240VAC, -15%, +10% / 50Hz; or 24VDC/AC.
- Power consumption : ≤ 3W
- Operating Ambient : Temperature -10~+60°C; humidity ≤90%RH
- Note 1 : B thermocouple obtains the above measurement accuracy only at the range of 400~1800 .
- It °C s measurement from 60~400 . °C is less accurate.
- Model no. AI-7021-D5
